The RCS Cell-Link keypad or prox card reader is the main controller behind a cellular access control system designed for remote self storage facilities where an internet connection is not available. It is easy to program valid users and track activity at up to 32 controlled access locations via the cellular connection. The unit is built for ease of customer use and service dependability.

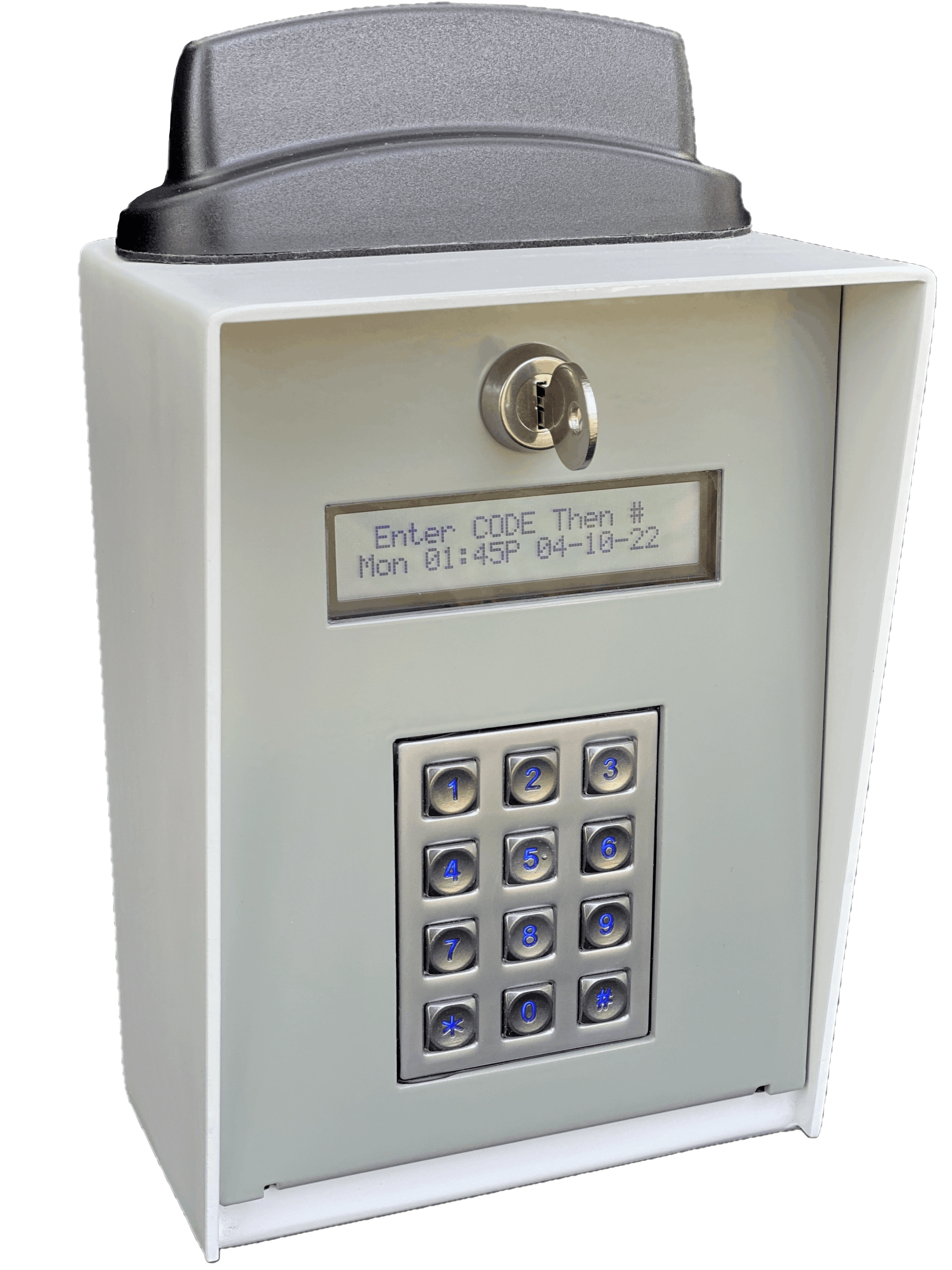

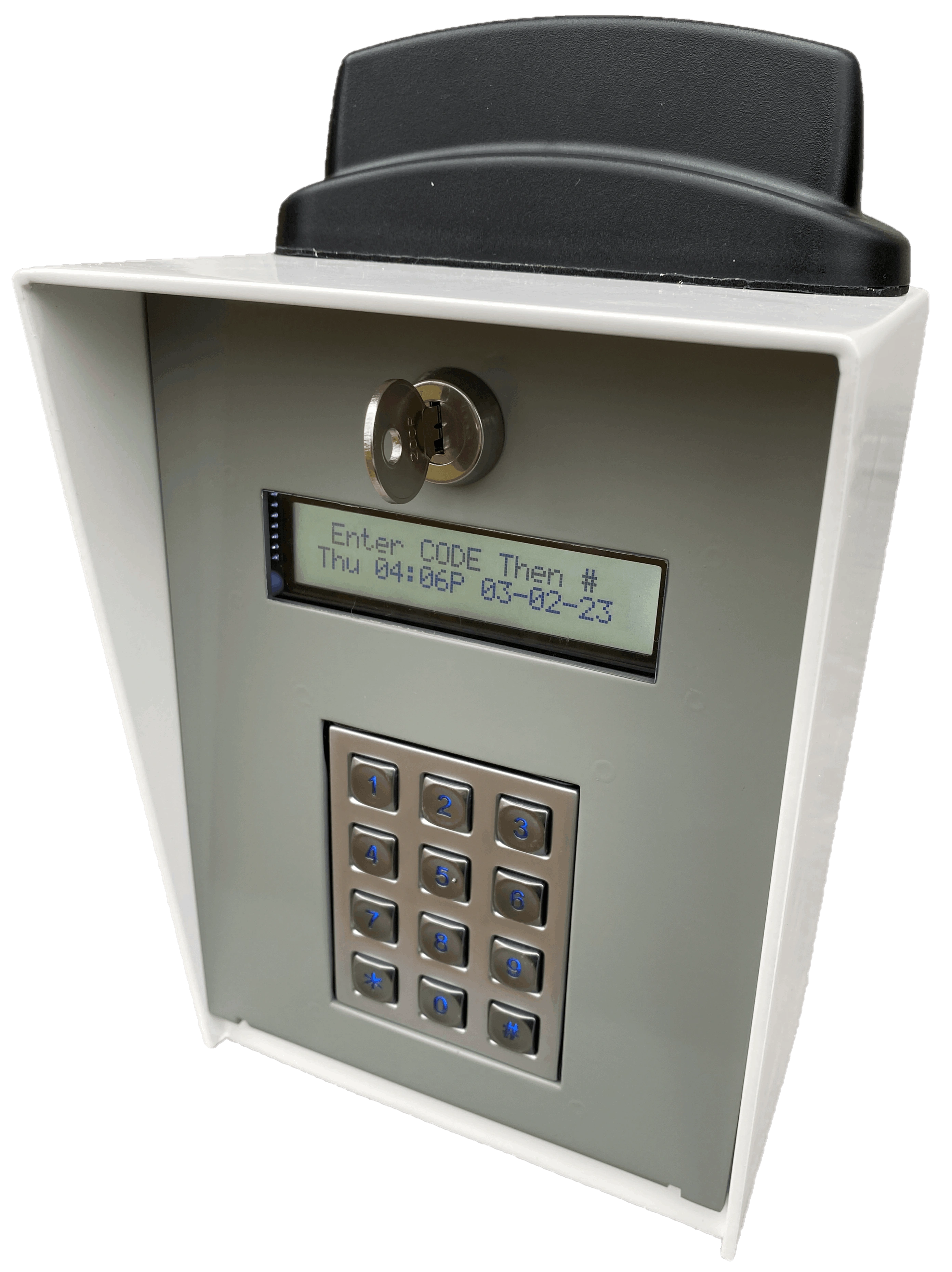

The Cell-Link controller includes an industrial grade, back-lit keypad, two line customer display and powder coated aluminum enclosure. The controller board is protected with heavy-duty surge protection devices on both the power and communications inputs. It has also been designed for easy field service of replacement parts if needed. Additionally the controller comes with the required 24 volts DC power supply which makes it easy to retrofit into existing locations.
The system will connect to an on site or remote office computer using the cellular internet connection. It is easy to program valid users and track activity for the entry gate using the wireless connection. The unit is built for ease of customer use and service dependability, with only minimum monthly fees. Up to 31 additional keypads can be added to the system without adding any monthly fees.
Remember, RCS Cell-Link is a drop in keypad system that is compatible with up to 31 additional On-Site or Air-Link keypads, providing real time remote updates and monitoring for these keypads all for one low monthly cellular fee. For ease of use and install, the cellular account is managed by RCS and the unit comes pre-configured ready to be connected.
Not sure which communication type fits your facility? Read our comparison: Wired vs. Wireless vs. Cellular Storage Gate Keypads.

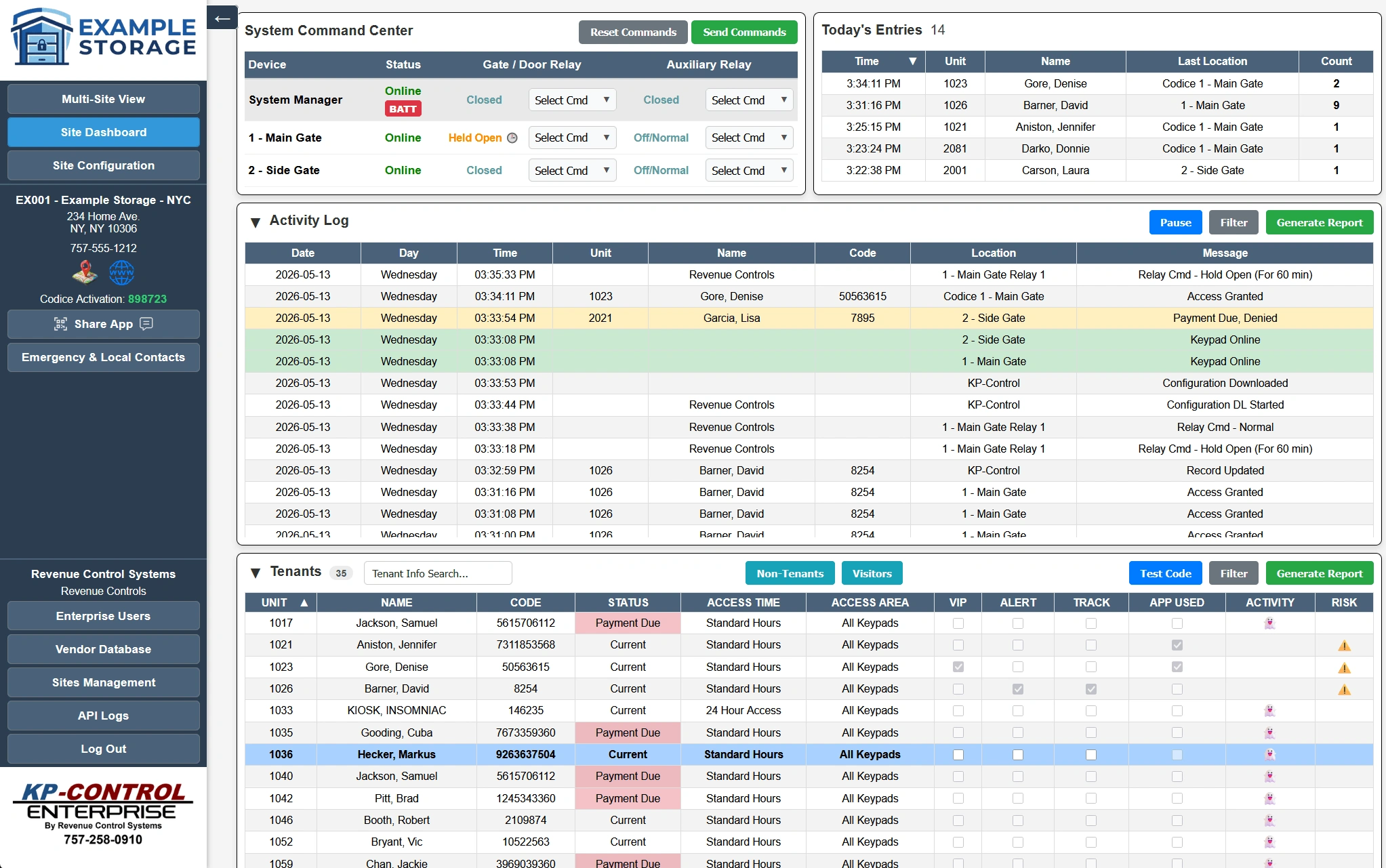

KP-Control System Software
The system control software, KP-Control, is very user friendly and easy to use. All the controls, information and reports are on the home screen. KP-Control interfaces with most popular self-storage management software programs, so no double data entry is needed. All valid users and user activity logs are uploaded/downloaded through the cellular internet connection in real time.
The software includes remote gate control, time zones, access zones, customer status, on site customer display, activity and database reports, real time system status and more. KP-Control can manage up to 2250 tenants with codes up to ten digits long and will automatically update tenant information changes from a third party management software program.

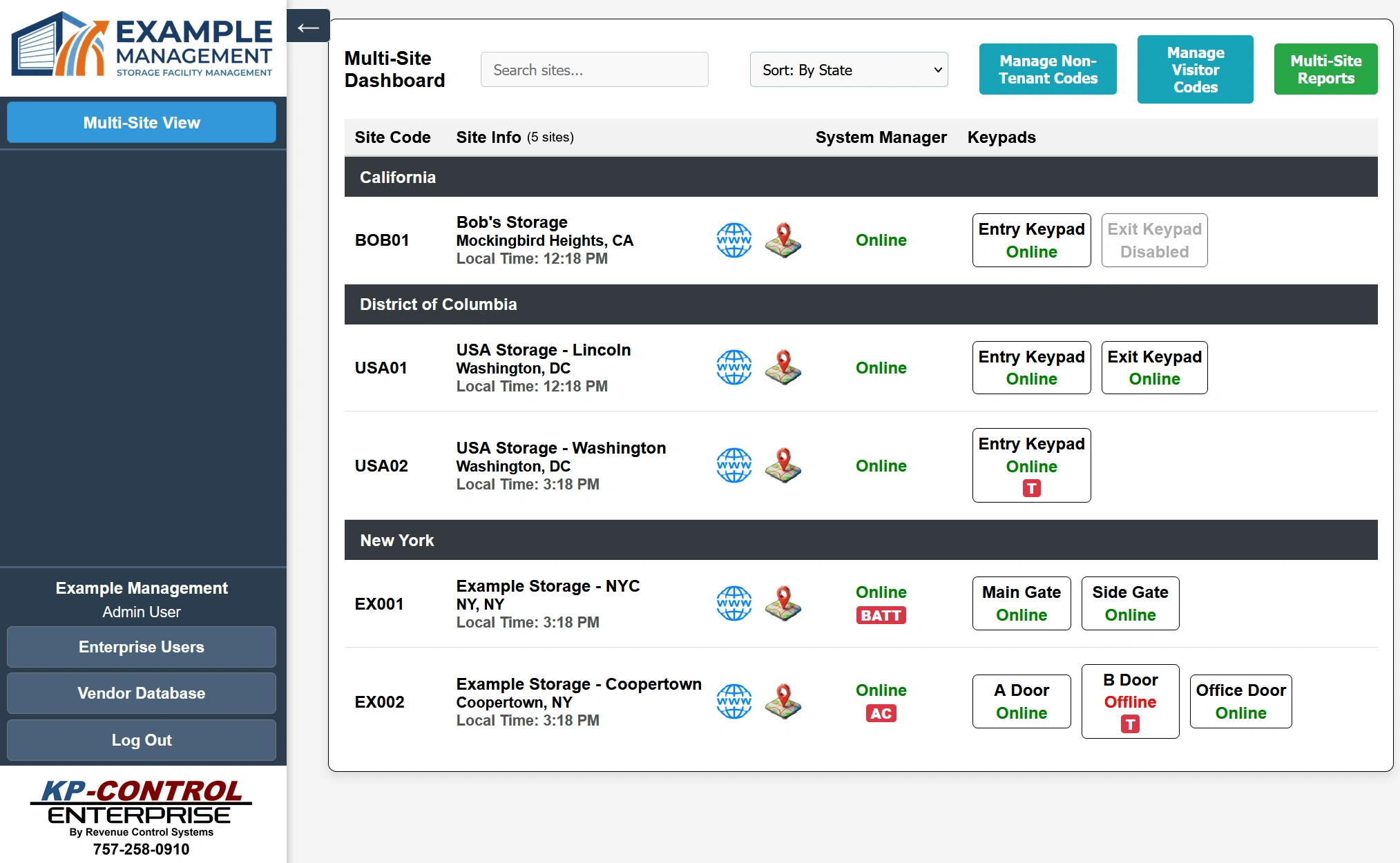

KP-Control software can also manage multiple sites with different user databases from one screen. If your facility has a satellite location with a different set of users, it is simple to differentiate between locations with the 'multiple sites' function, allowing you to choose what location a new user is added to.
KP-Control controls access by time and day of the week (Time Zones) and by user account status. Also included is delayed code activation with auto expiration date (for visitors). If the site has multiple access locations the system can control access by location. Programmable relay activation timers can hold open the gate automatically at times you wish.
Hardware Specifications
- Network: Wired RS485 Communication Network
- Compatibility: Mix wired and wireless keypads
- Hardware: No external hardware needed
- Capacity: Max User codes/Cards: 2250
- Code Length: Max code length: 10 digits
- Access Rules: Auto expire/activation by date (visitors)
- Time Zones: Max Time Zones: 99
- Options: Optional Prox Card Reader
- Relay Timers: Auto Relay Timers: 2 per day
- Clock: On board Real Time Clock w/DST (15 year clock battery)
- Display & Buttons: Illuminated keypad buttons
- Enclosure: Powder Coated aluminum box
- Power Input: Input voltage: 24 VDC included (Current usage : 800 mA)
- Dimensions: 11" high x 6" wide x 4" depth
- Extras: Optional Elevator Access Controller & Remote activity log viewing
RCS Codice! Phone App
Revenue Control Systems Cell-Link access controllers have the optional capability to use our Codice! Phone App to access a facility without entering a code on the keypad unit.
This allows a customer to enter their code via our phone app as they drive up to the gate. The customer will simply download the Codice! app to their device from either the Google Play Store or the Apple App Store. Each facility will have a required activation code to allow access for only that location.
After the activation code has been entered, the customer will see the app home screen for the facility they are storing with. The app will let the customer enter their code and click send when they are in close proximity to the keypad unit, allowing the gate to open. There is no need to enter their code on the physical keypad. We are able to personalize each facility’s app with buttons of your choice such as, allowing the customer to pay their rent, visit the facility website, and more all from the Codice! App.

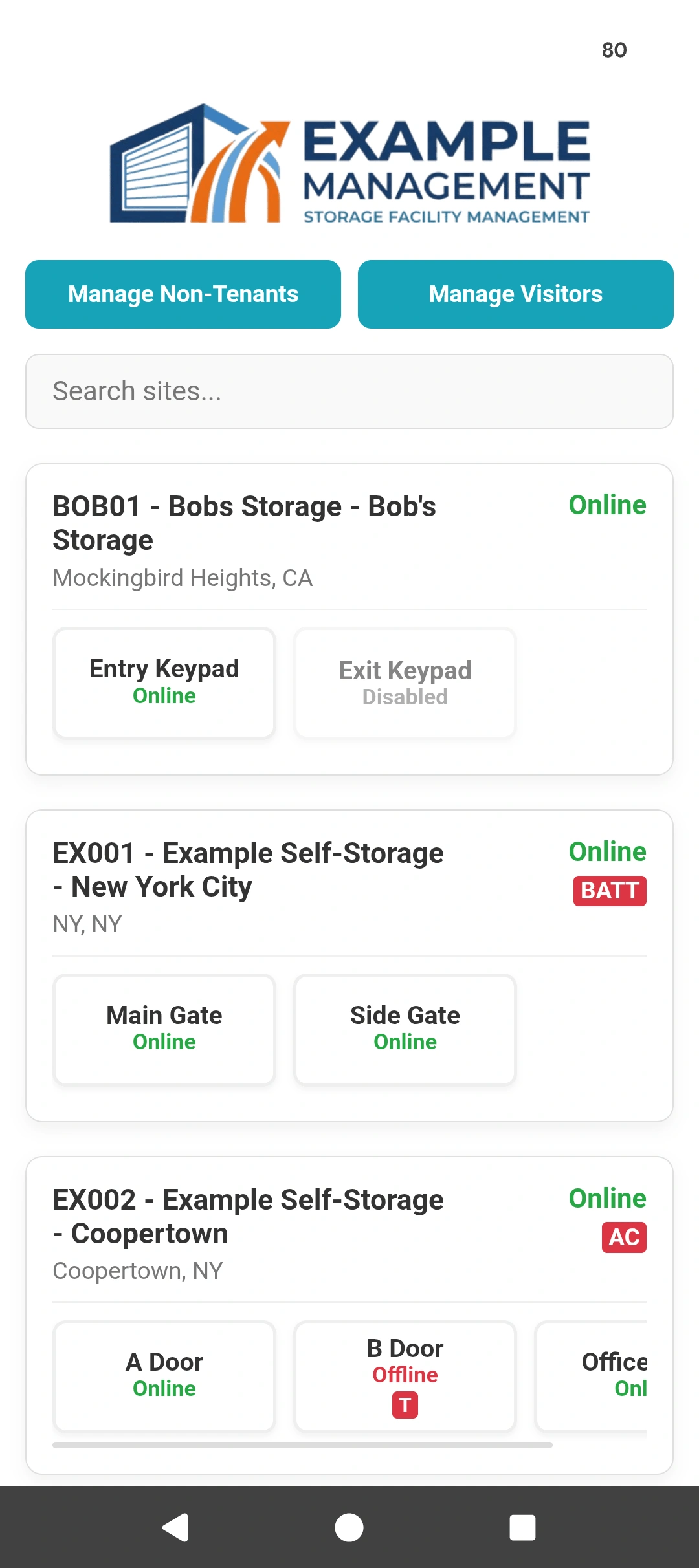

Android Home Screen

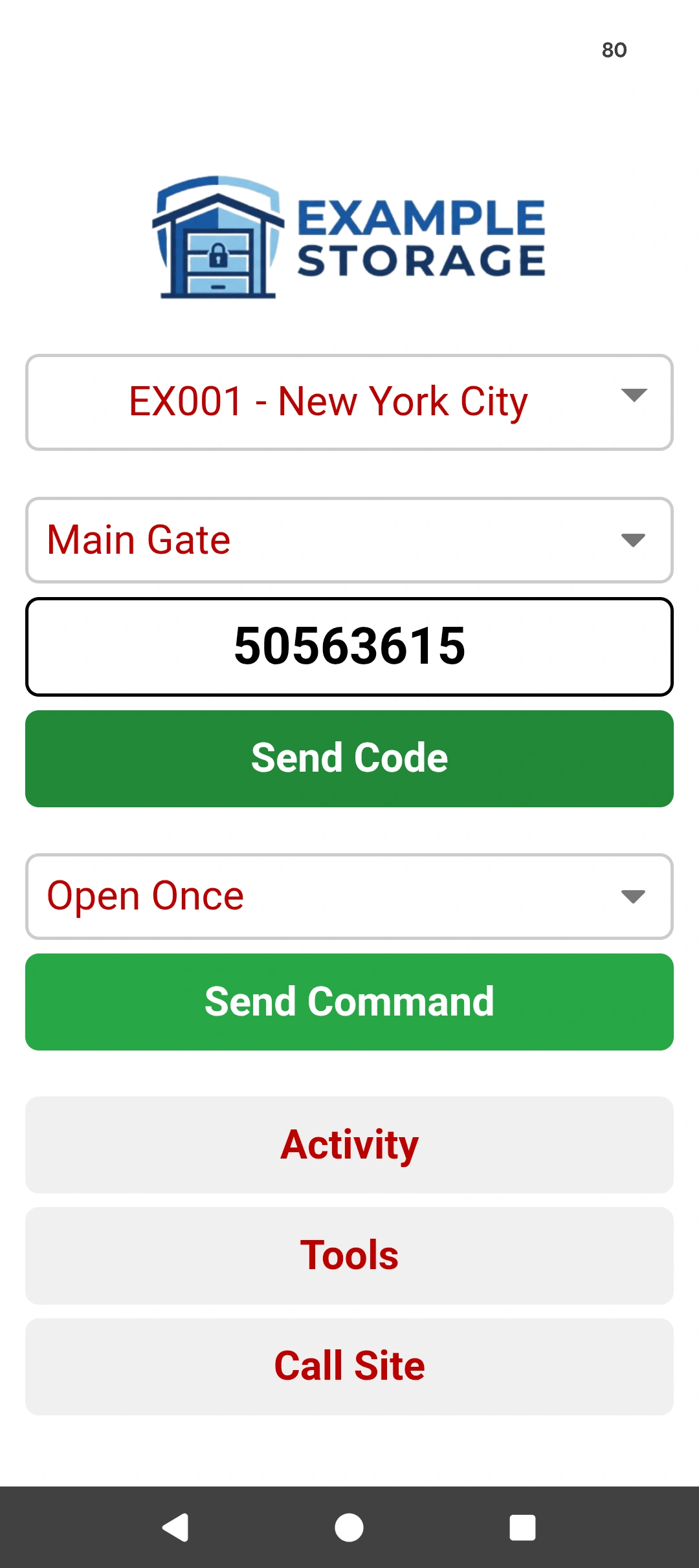

iPhone Home Screen
